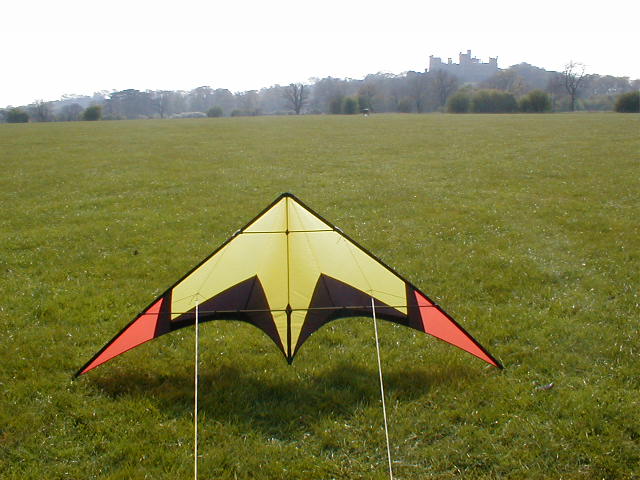

Thornback
Plans for the Thornback
|
||||||||
|
||||||||
|
CAVEAT EMPTOR - READ BEFORE BUILDING
Before you rush out to invest a small fortune in ripstop and carbon you
should be aware of this designs idiosyncrasies just in case you might

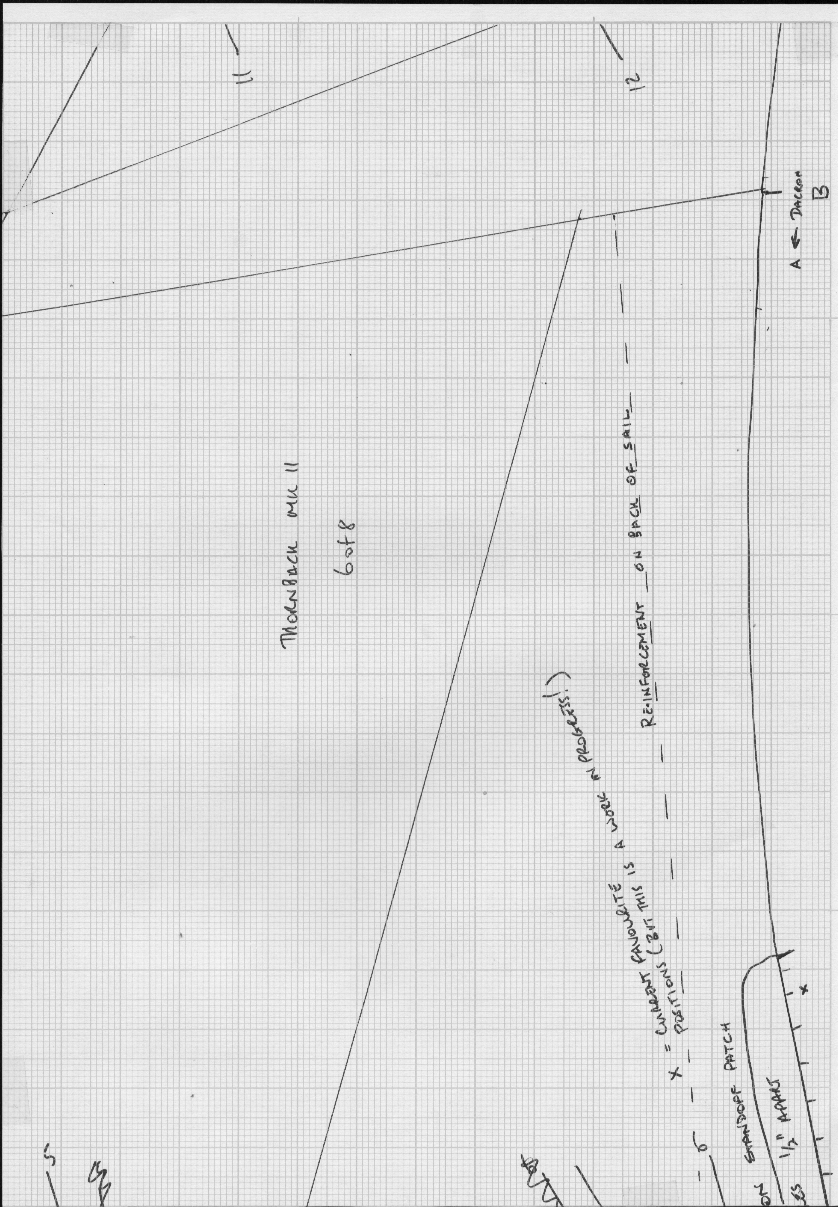

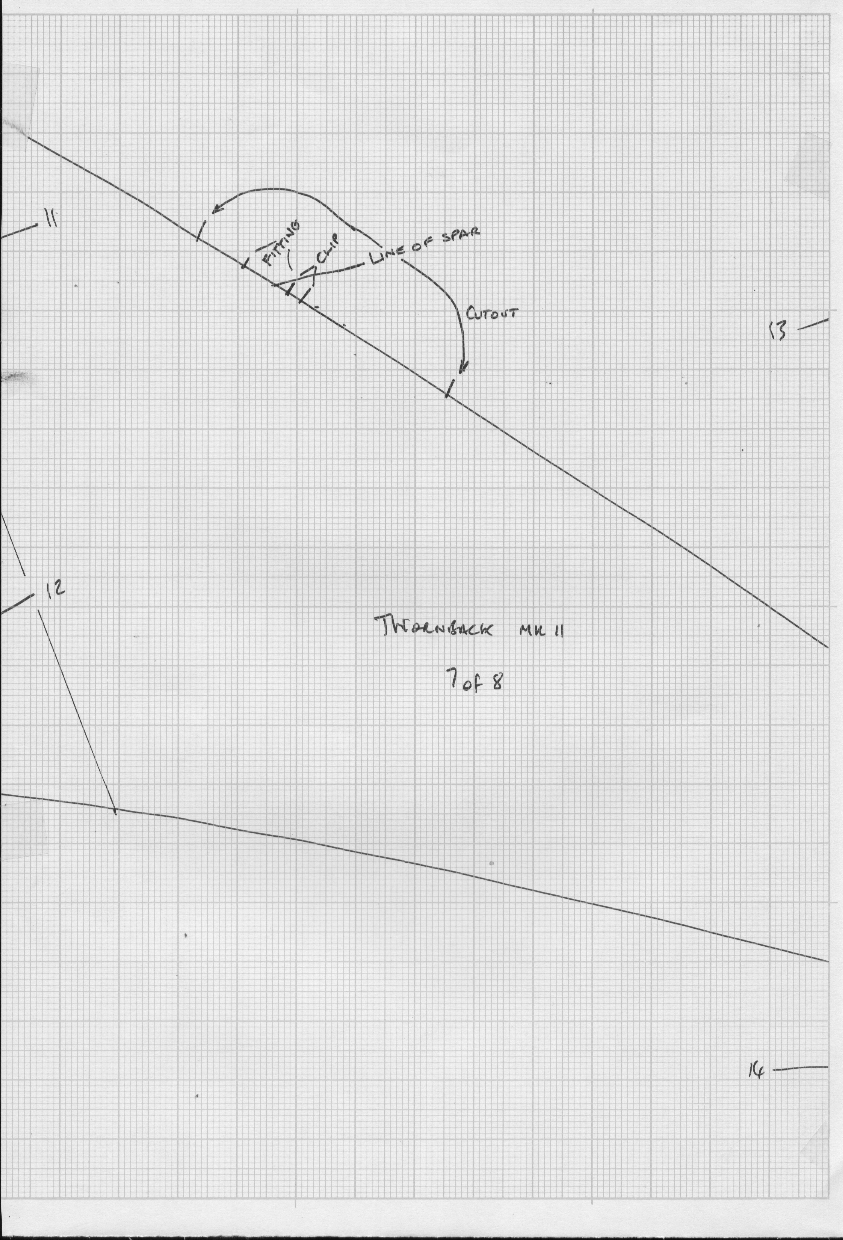

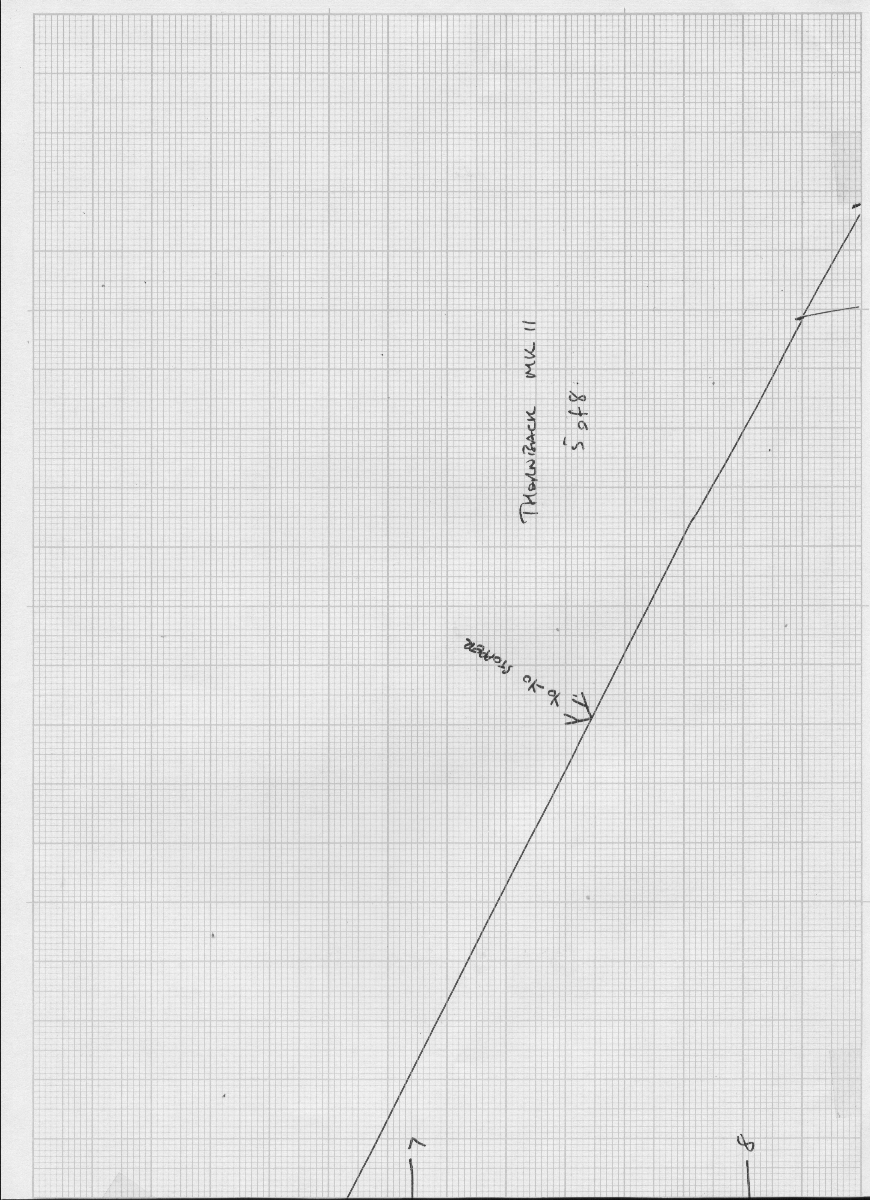

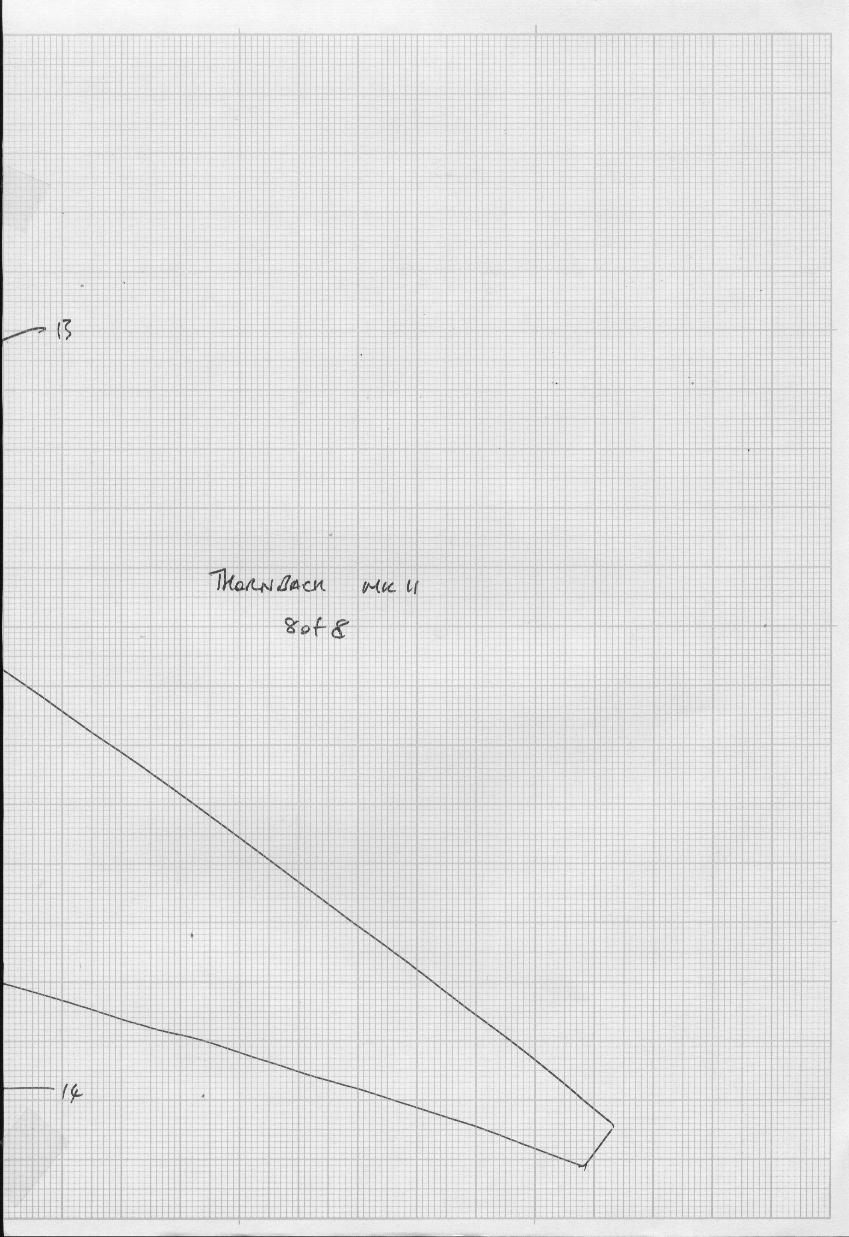

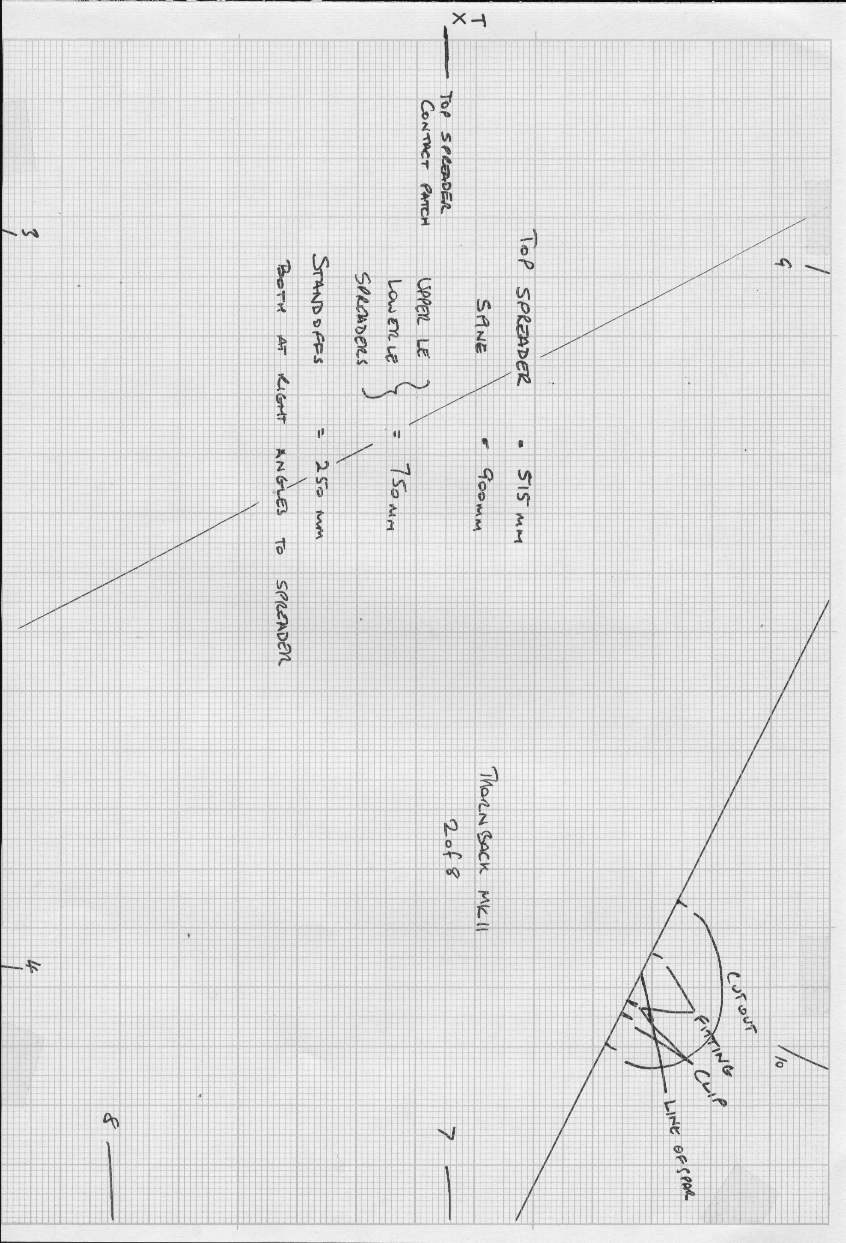

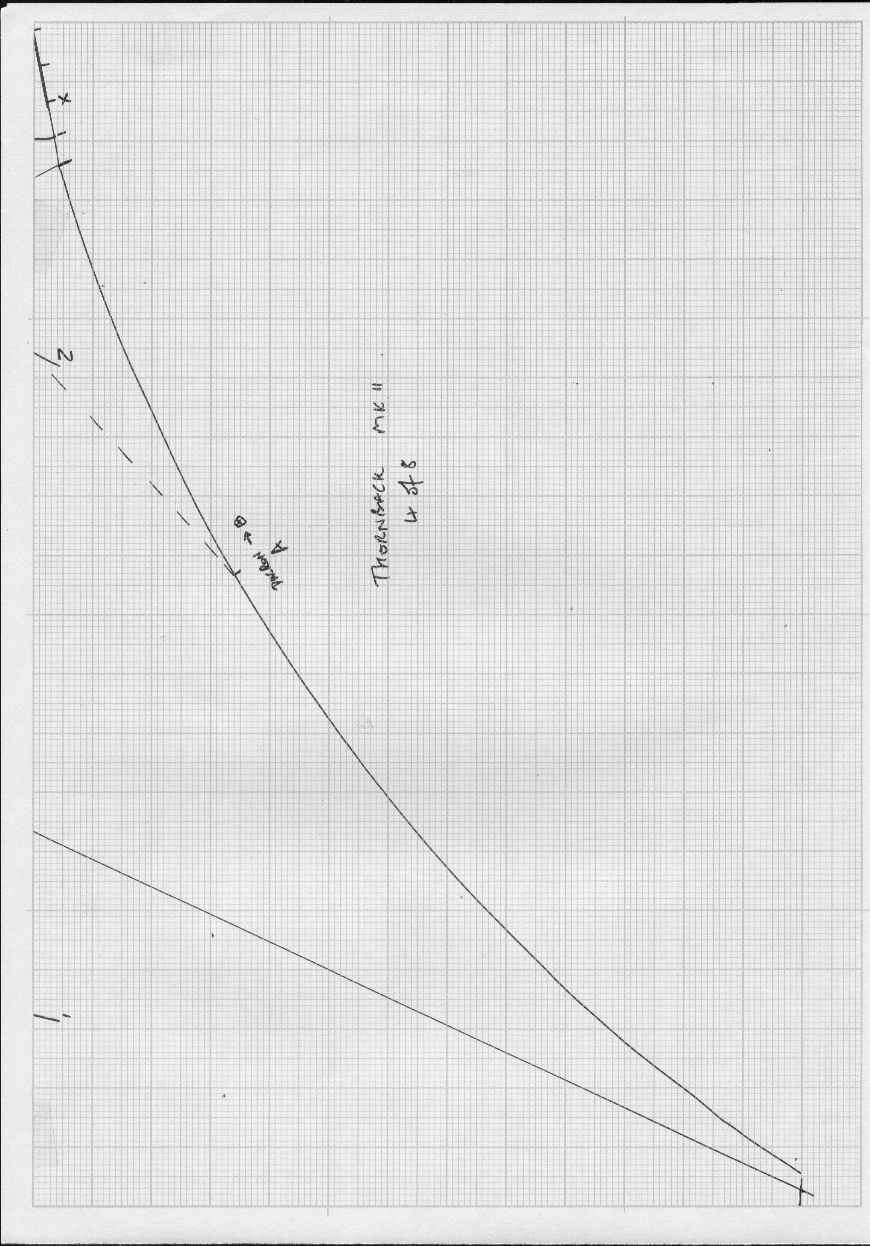

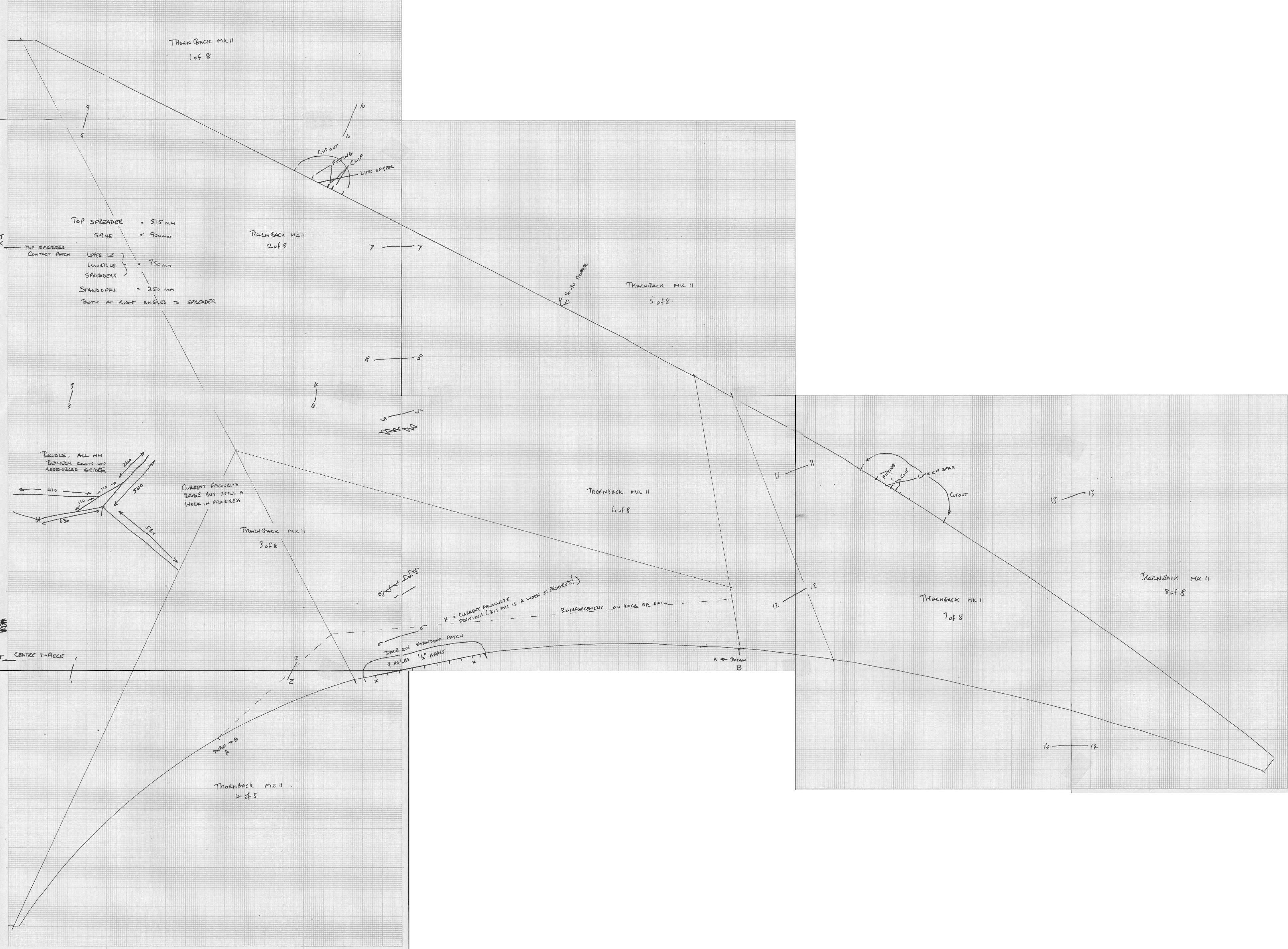

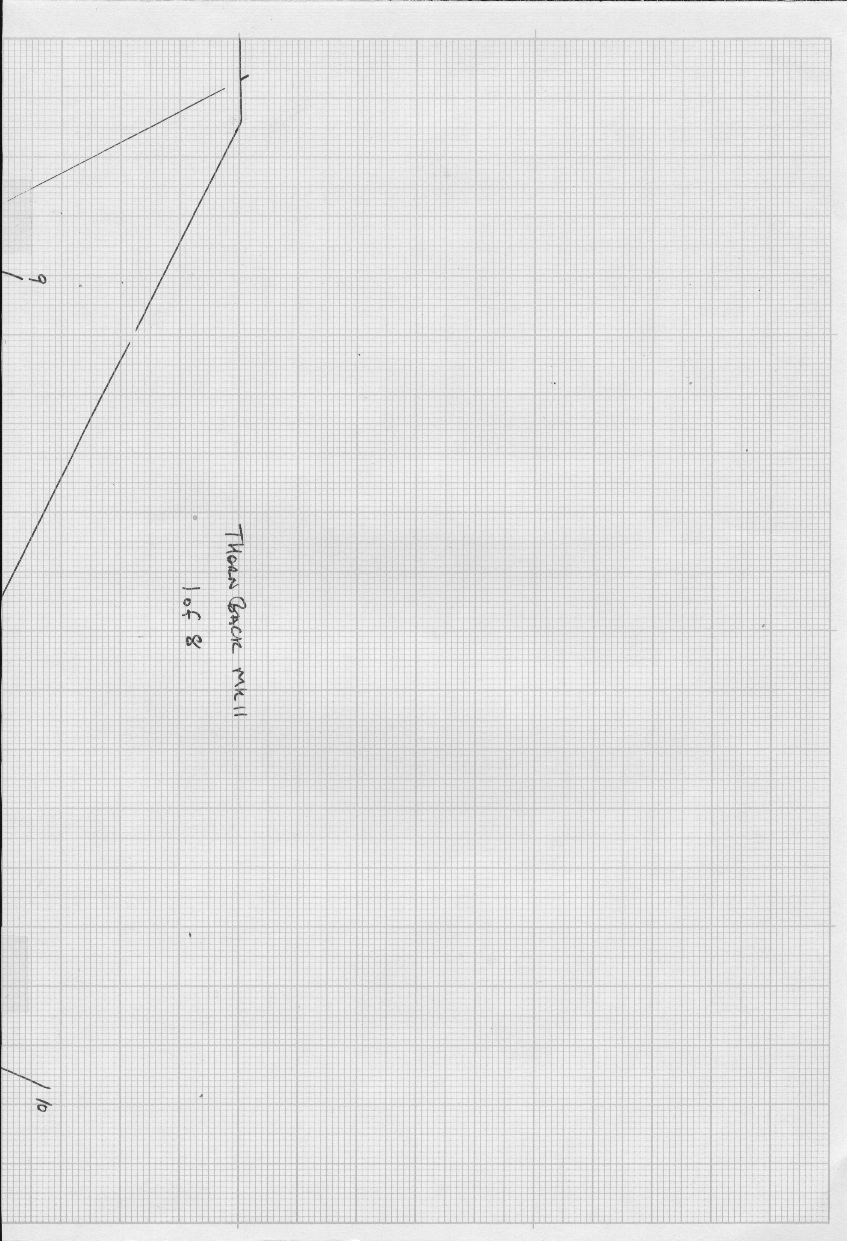

not like it. Thornback Mk2Plans for the second version which is much better. See the design from scratch page for commentary. Erik Recke (datenland) has created the following plans from my scanned bits of graph paper. They are available in pdf, dxf and Vectorworks file formats. Thanks Erik!If you use the pdf plan be sure to clear the tick box to Shrink oversized pages to paper size (Acrobat Reader, other pdf viewers may vary). If you do not, your plan will print out undersized! These pdfs have been created for A4 paper. If you want to reassure yourself that the size of your printouts are correct see this sketch with approximate dimensions (I just counted the squares on the scanned graph paper). Thornback 2nd prototype, Vectorworks format Thornback 2nd prototype, DXF format I've recently read on Drachenforum some reports that the spine seam appears bent if the DXF format plan is opened in AutoCAD 2004. I've tested it in AutoCAD 2005/2006 without problem but if you use AutoCAD 2004 you should be aware of this and that the seam should be straight. Thornback 2nd prototype 1 of 8 Thornback 2nd prototype 2 of 8 Thornback 2nd prototype 3 of 8 Thornback 2nd prototype 4 of 8 Thornback 2nd prototype 5 of 8 Thornback 2nd prototype 6 of 8 Thornback 2nd prototype 7 of 8 Thornback 2nd prototype 8 of 8 Or... all joined in one huge file (right click and save-as) Latest ChangesSince this is a work in progress I will put whatever I'm doing to the current version here, especially if it differs from the plan:
SailThe sail was made from PC31, the panel layout I used is marked on
the plan but if you choose a different layout it would be a good idea
to keep the fabric aligned with the trailing edge wherever possible to
avoid stretching from too many yo-yos. If you are curious, the layout
was inspired by the Highly Strung Aerial.

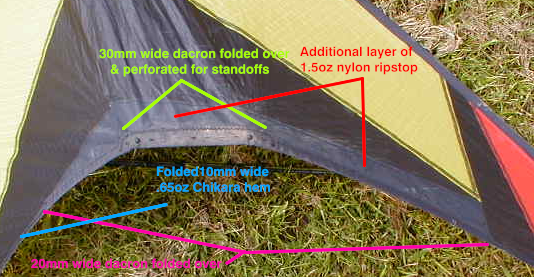

Detail of reinforcement (note for the eagle-eyed: this one has 11 standoff holes rather than the 9 on the plan but the extra ones really are not useful) Rather than use bungee for the leading edges, I sewed a piece of 150lb rok line between the leading edge dacron and the sail and I simply pull this through the nock, wrap it around the nock four times and tuck it under itself. Framing
I framed the kite in 6mm Epsilon pultruded carbon and used cut down G-Force UL for the spreaders.
I don't normally advocate using tapered spreaders since they bend near the leading edge changing the angle of the outer part of the sail but shortened G-Force UL's are very stiff. Take care if you use alternatives, something like a P200 linear spar might be better than a 3PT since it wont bend near the end.

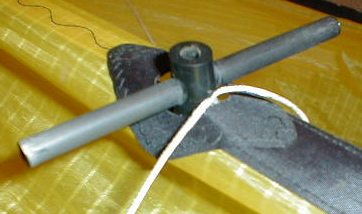

Detail of the T-Piece to match G-Force UL to a 6mm spine. A piece of robust polyurethane tube has two holes drilled through at right angles, the spine goes through one while a piece of P200 went through the other to act as an internal ferrule for the G-Forces. I also put a piece of pultrude inside the P200 just for extra strength. Bridling

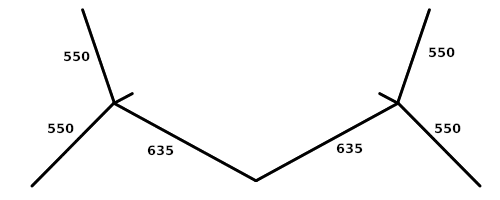

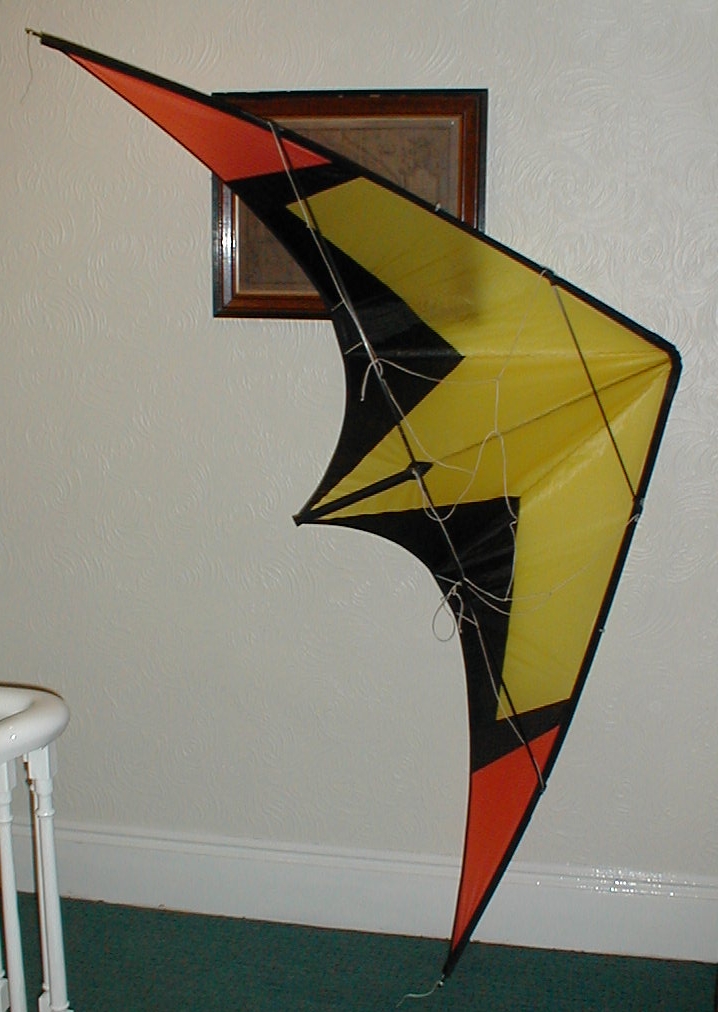

This is my current favourite, a 3 point static bridle:
For ease of adjustment I have an adjustment built into the upper outhaul and the inhaul is adjustable too. The upper adjuster is just a pigtail with multiple knots which the outhaul attaches to with a larkshead (as found on some French kites). This bridle seems to give a much snappier roll-up than the cross-active and better performance at the top of the kites wind range. This was an attempt at a cross active bridle, its not bad but it certainly isn't perfect. It is a somewhat over-activated and tends to make roll-ups feel soft and sluggish. Shortly I'll be replacing this with a turbo or 3 point static bridle which seems to give a much more direct feel to one pop yo-yo's. You can get a feel for it just by taking off the activator legs and flyign the above as a 3 point bridle. WeightsAt first I used a couple of fittings and a piece of brass rod
similar to the R-Sky weight kit but a 30g piece of 6mm brass is approx
100mm long so it spreads the weight out too far up toward the T-Piece.
What works best for me is up to 30g of lead flashing rolled around the
spine as close to the end as possible.
Incidentally, the ferrule in the picture was only put there so I could fit the kite in my luggage when I flew to Cyprus earlier this year. It is not another weight. GlidesI was too lazy to make a leading edge that covered the fittings,
this was only a prototype! I decided to use cable tie off-cuts. I've
seen people try to superglue these in which is unsuccesful because
superglue does not stick to nylon. I just use another tiny cable tie to
hold them in place, it works well and the lines slip over the small tie
easily enough.

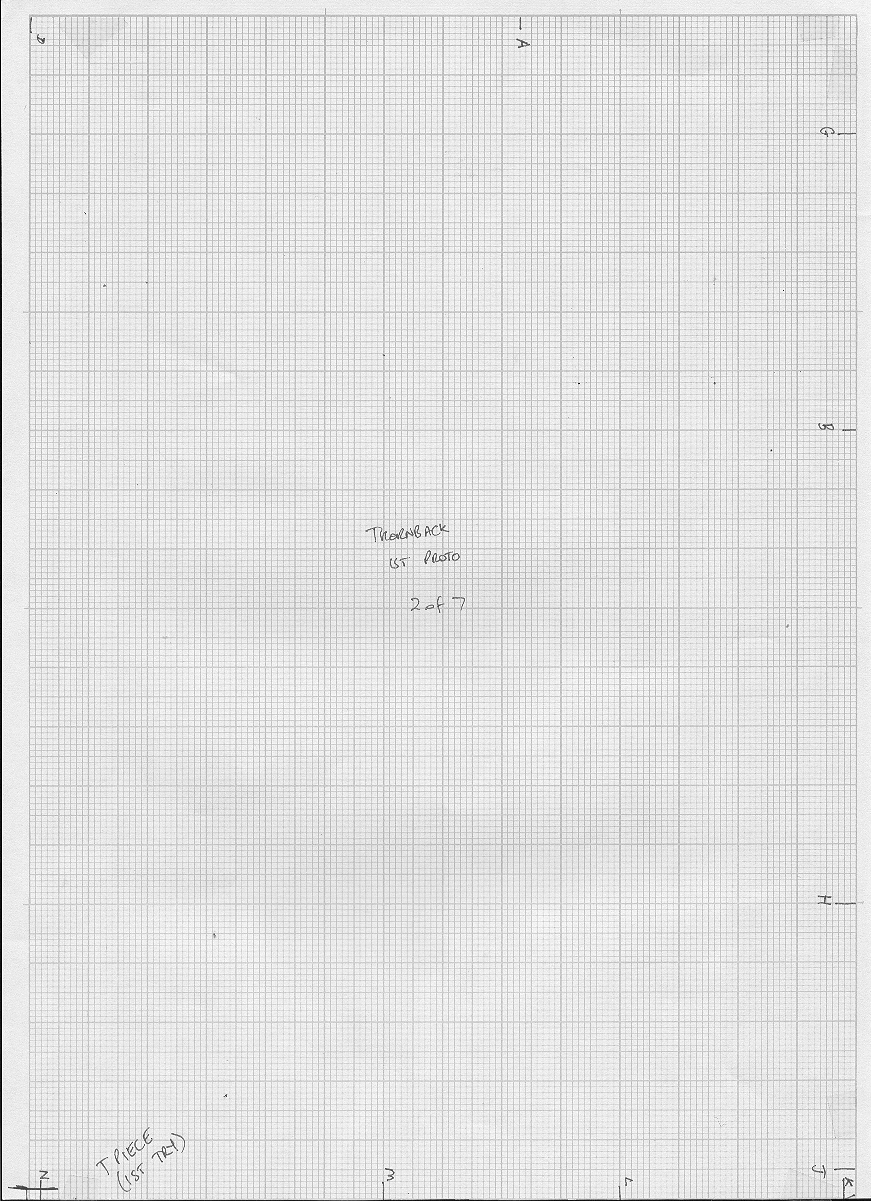

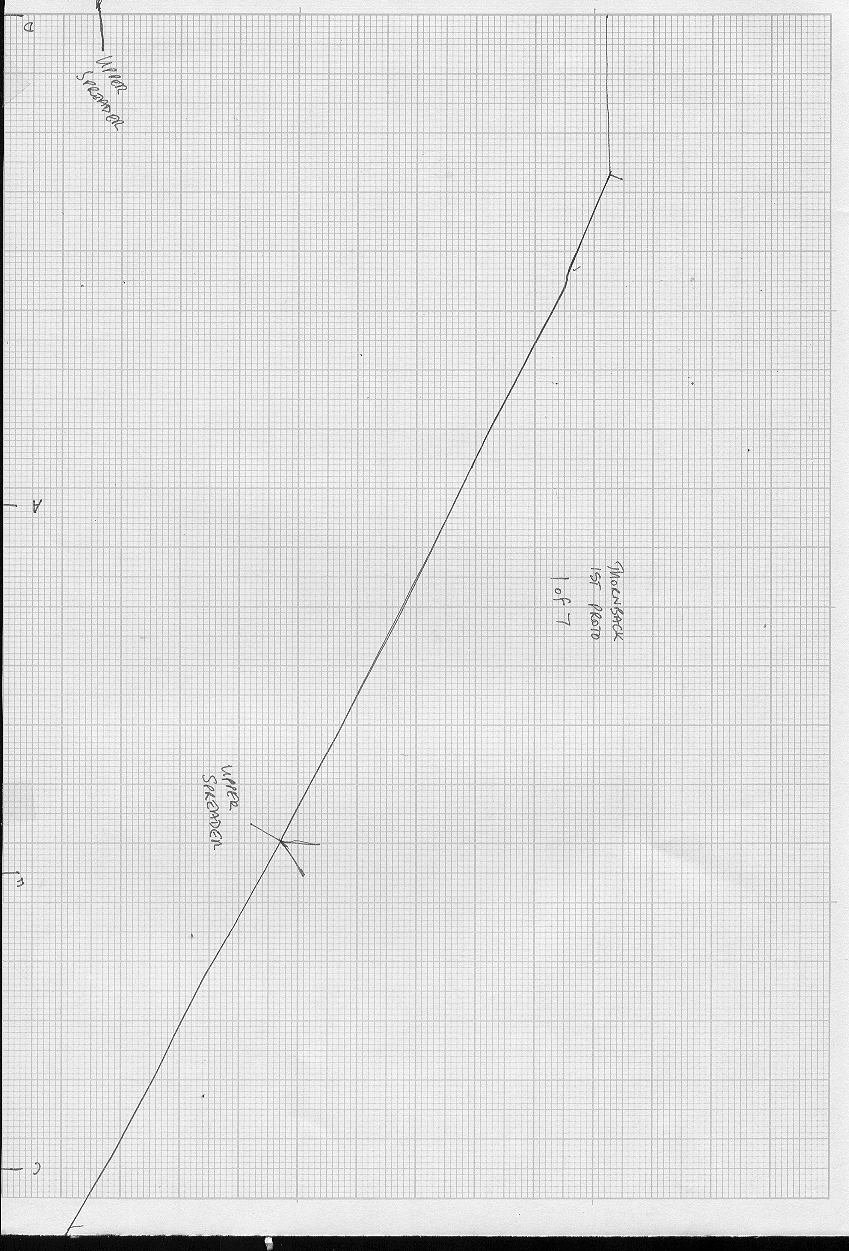

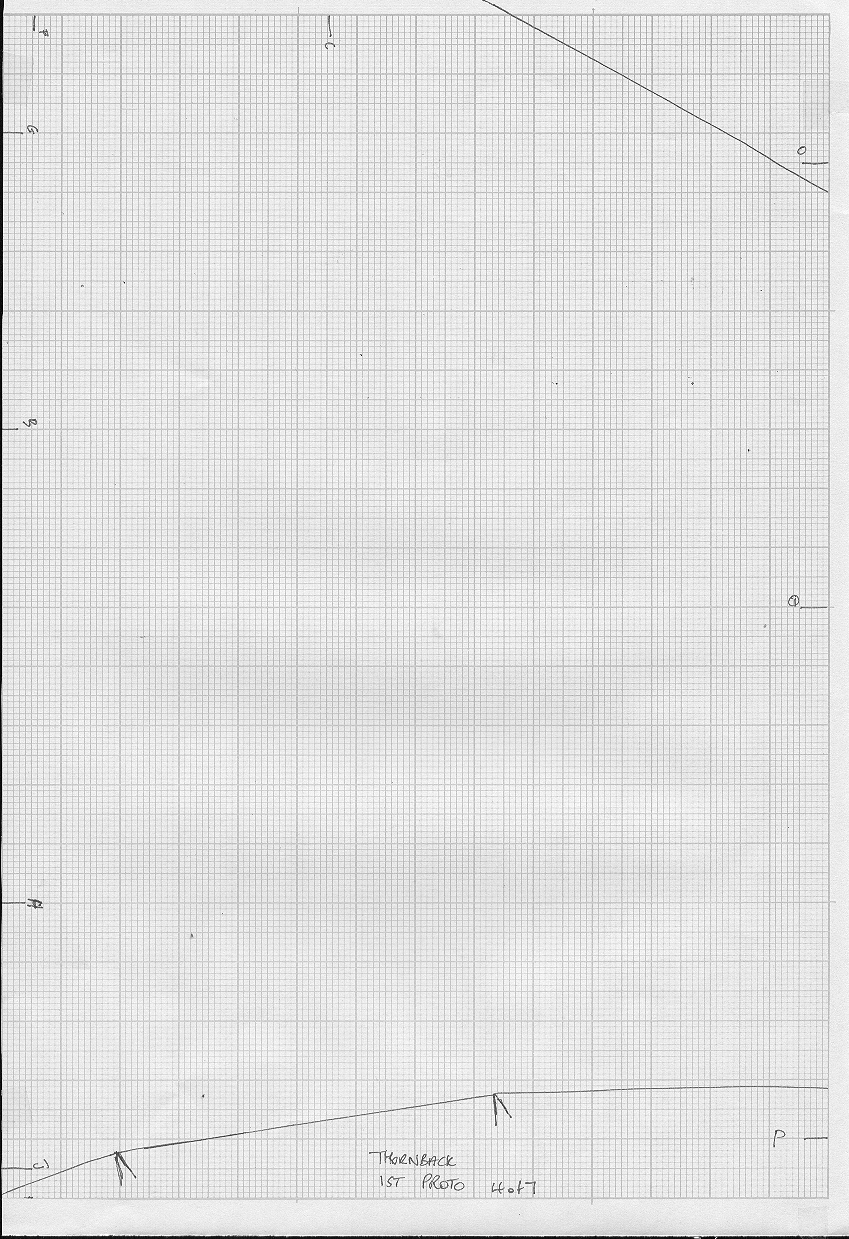

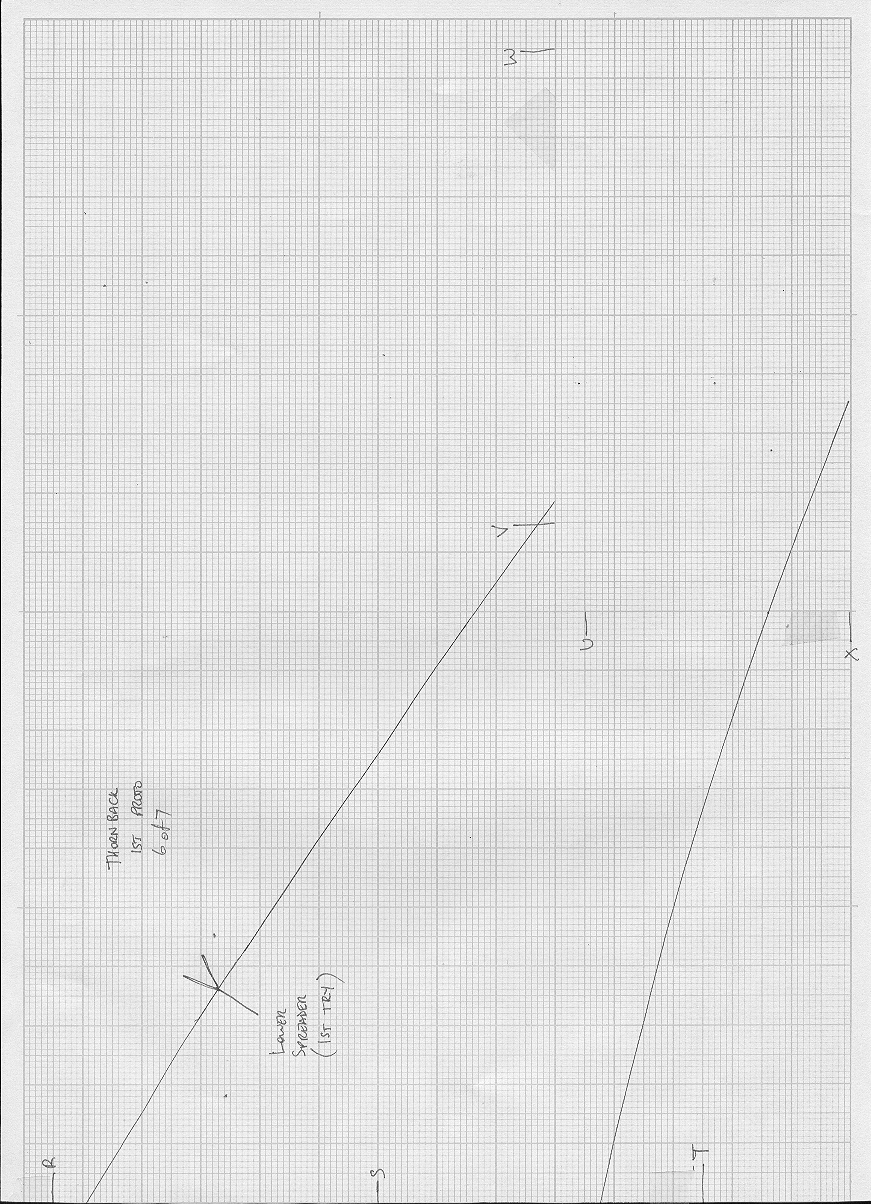

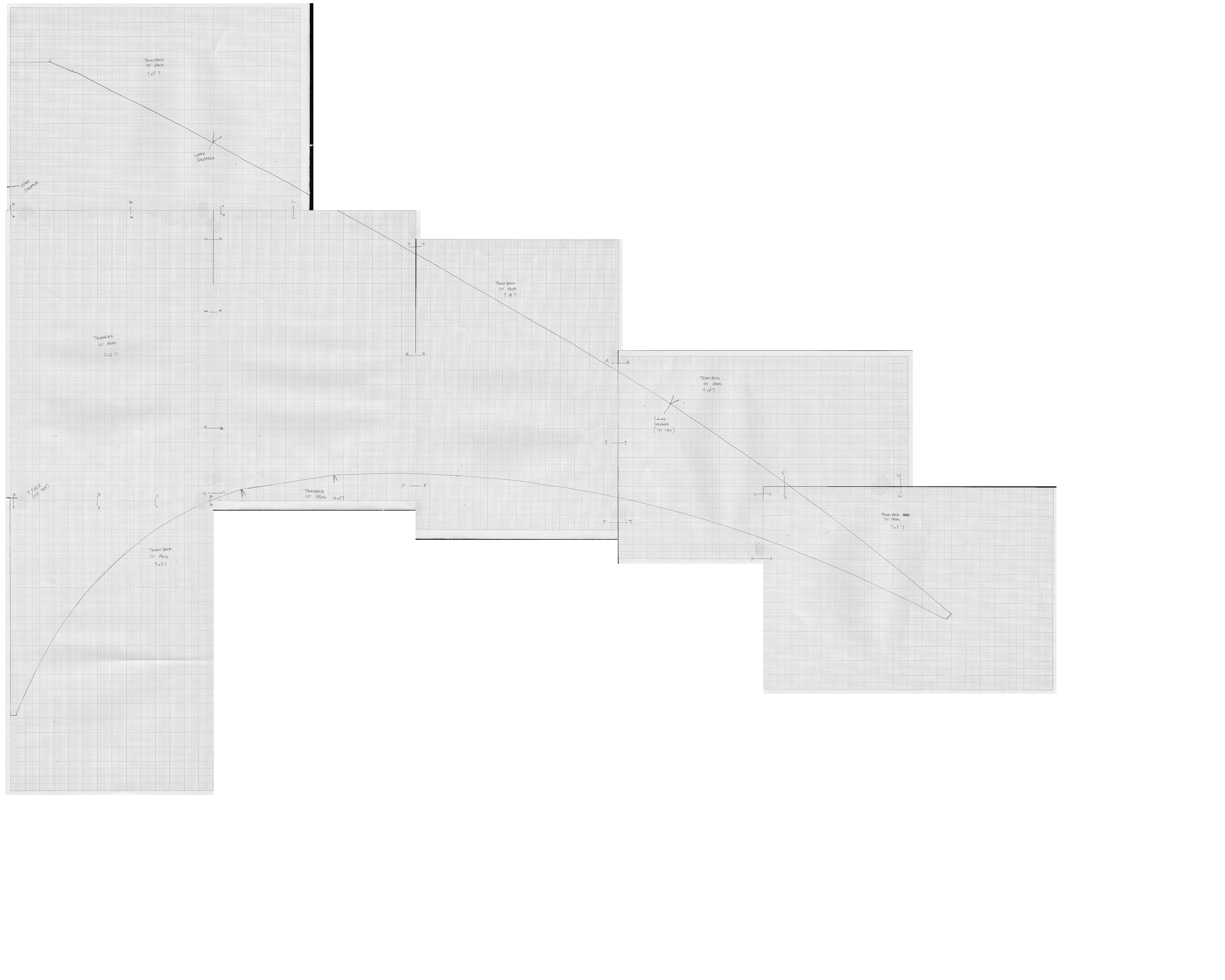

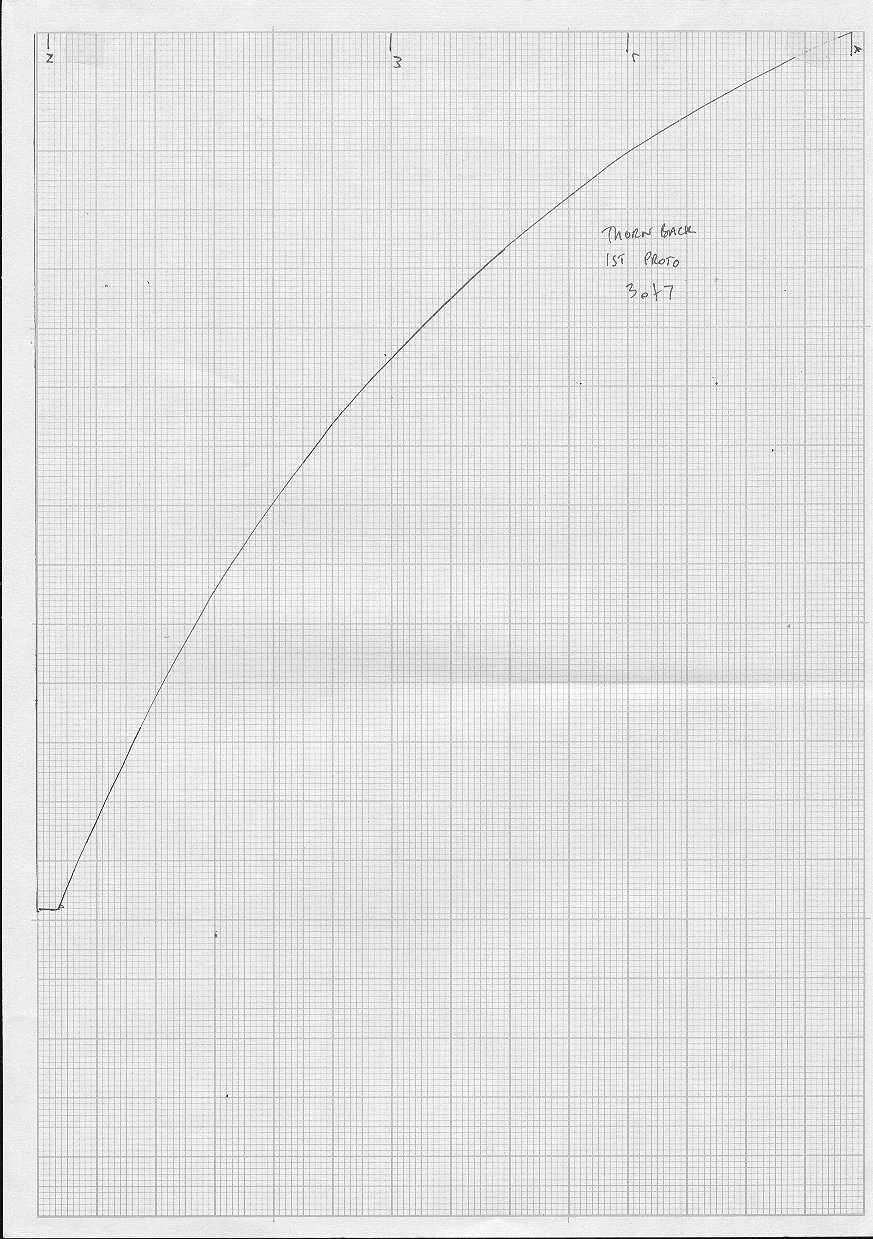

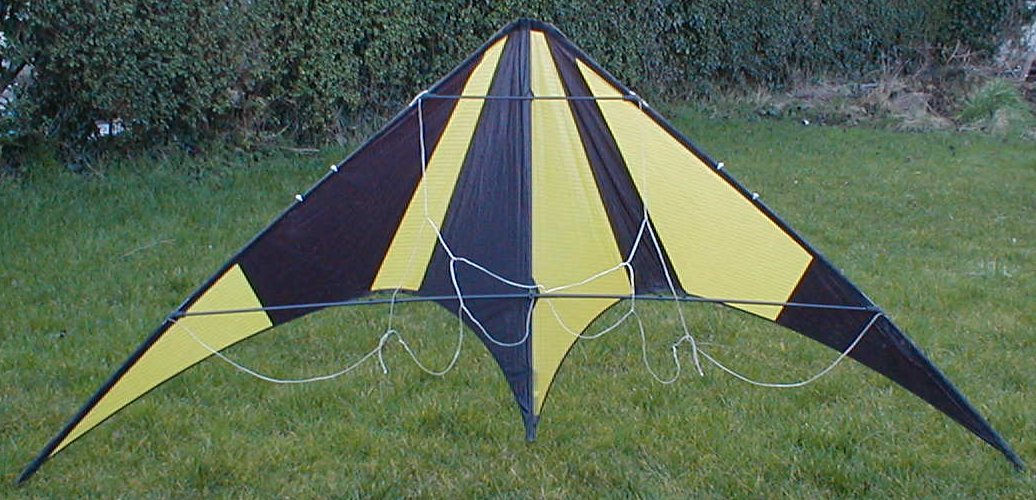

Thornback Mk1All I've done so far is copy the templates onto graph paper and scan them in (more time consuming than you think!) but if your that keen the scanned images are here until I get them drawn up properly. Note that these are for the first prototype only, don't bother trying to build this use the plans further above! Thornback 1st prototype 1 of 7 Thornback 1st prototype 2 of 7 Thornback 1st prototype 3 of 7 Thornback 1st prototype 4 of 7 Thornback 1st prototype 5 of 7 Thornback 1st prototype 6 of 7 Thornback 1st prototype 7 of 7 Or... all joined in one huge file (right click and save-as) |
|||||||
