The Sceptre

Bridle

Use a braided polyester between 20 - 30 kg breaking strain for the 1.8m and between 30 - 50 kg for the 2.7m.

Use the charts provided to make these.

Flying lines should be 50+ kg for the 1.8m and 100+ kg for the 2.7m.

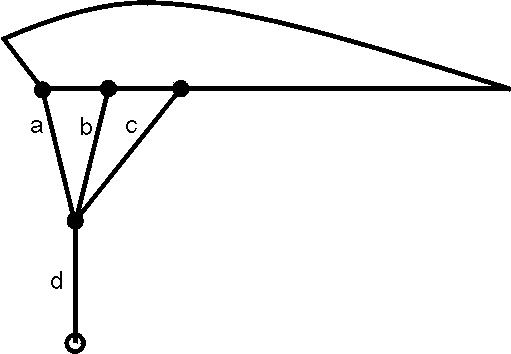

1.8 m upper bridle dimensions (cm)

Profile No.

1

3

5

7

a

20

20

20

20

b

20

20

20

20

c

24

23

22

21



2.7 m upper bridle dimensions (cm)

Profile No.

1

3

5

7

a

30

30

30

30

b

30

30

30

30

c

36

34.5

33

31.5

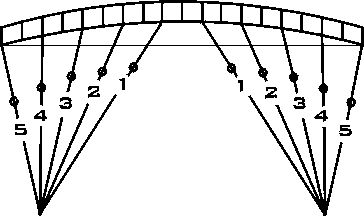

1.8 m lower bridle dimensions (cm)

1

2

3

4

5

d

68

63

57

52

51



2.7 m lower bridle dimensions (cm)

1

2

3

4

5

d

102

94

85

78

75

© Dave Holt 1999
