Raaseri Freestyle


Copyright & credits

The copyright of the Raaseri plan is owned by Simo Salanne.

Active Bridle is designed by Andy Wardley. He has extensive documentation on his web page.

Implementation of Active Bridle for Raaseri was made by Mike Emery.

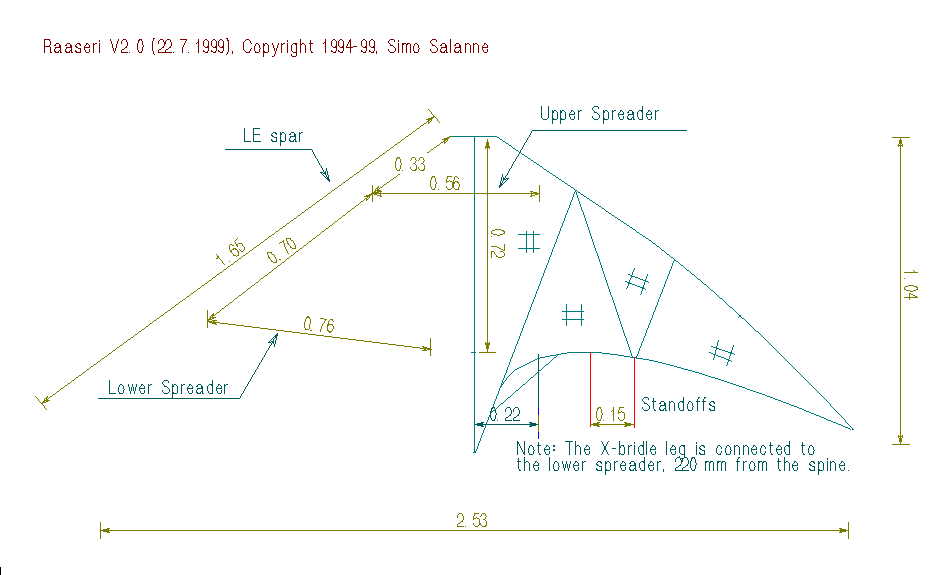

Raaseri Freestyle Activated is variation of the Raaseri. Another pair of standoffs were added to give smoother floats in Axel and Flat Spin type of movements, red in the drawing. Standoffs have equal lenght. Active Bridle gives some extra dynamics in trick flying.


Active Bridle

For construction and tuning tips see Andy Wardley's page and Mike Emery's article Raaseri Bridle Types.

Lower legs x 2
--------------

  Lower                                                     Leading
 spreader               Activator    Stabiliser               edge
    ¦------------------------------------------------------------¦
    |                    |            |                          |
    |                    |            |                          |
    | <---- 51cm   ----> | <- 26cm -> | <-------- 73cm --------> |
    |                                 |                          |
    | <----------- 77cm ------------> |                          |
    |                                                            |
    | <------------------------ 150cm -------------------------> |

Upper leg x 2
-------------

    Top            Activator      Tow  Lower
    ¦-----------------------------------¦
    |                |              |   |
    | <--- 36cm ---> | <-- 26cm --> |   |
    |                               |   |
    |                             ->|6cm|<-
    |                                   |
    | <------------- 67cm ------------> |

Activator x 2
-------------

    ¦--------------¦
    |              |
    | <-- 17cm --> |

Tracers x 2
-----------
