Material Layout



To complete this option, you will need 102” X 54” wide .75 oz. material of Color 1 to make 4 main panels including enough for tail material.

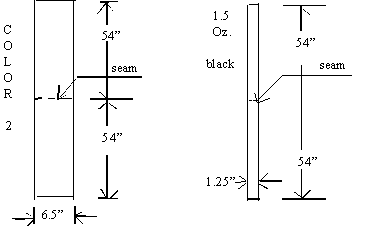

You need 78” X 54” wide .75 oz. of Color 2 to make 4 wing tips, color stripe in mail sail and enough for tail material.

You will need 2 pieces of 1.5 oz. black material to make center pocket 1 ¼” X 75” long.

You will need black 1.5 oz. edge binding material, approximately 20 yards, in 3 different lengths of strips – 27”, 32”, 42”.

Based on material 54” wide:

Color 1:     A piece 84” long X 54” wide will give you 4 main sail panels.

Color 1:     A piece 18” long X 54” wide for the tail.

Color 2:     A piece 36” long X 54” wide will give you 4 wing tips.

Color 2:     A piece 18” long X 54” wide for the tail.

Color 2:    A piece 24” long X 54” wide to make color stripe in main sail  panel.
