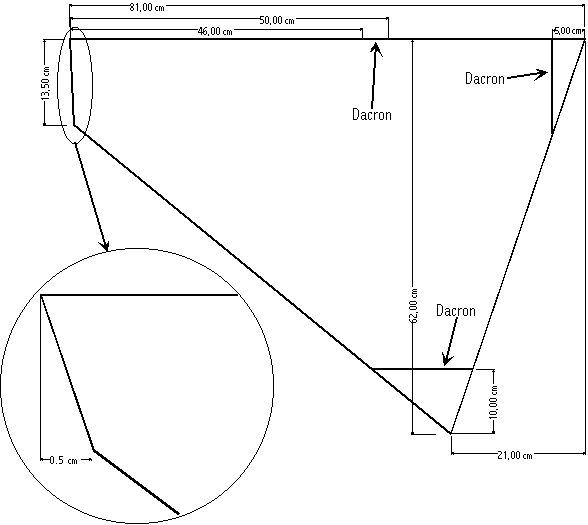

In the drawing you see the right side of the kite. The left side is of cause
simply a mirror.
The measures on the drawing are without the hem and only the
fabric. Witch means that the fly net and the dacron pockets (tunnel) must
be added to the top of the template. Me myself have used a 15 mm. hem.
If you are using
Micrograph Designer or know some one that are, you can download the drawings
here: cassiopeia.dsf, all the drawings
are in a 1:1 scale, so it should be possible to print the drawings and use them
as template. (If you are limited to a A4 printer, the template will be printed
in more pieces that you then will have to stick together).
